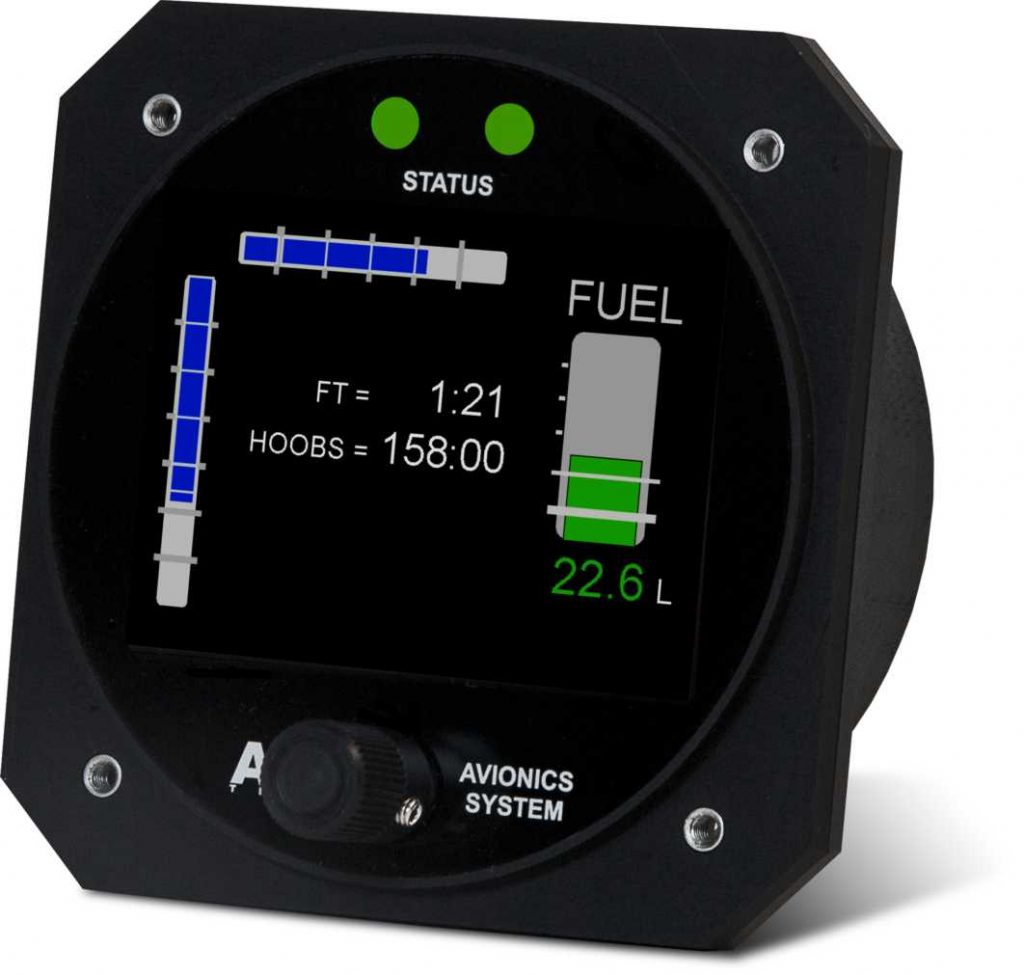

This instrument presents additional data of the aircraft: fuel level, two trimers’ positions, engine operation time and total engine operation time.
The casing is made of anodised aluminium. The LCD display is protected by high quality acrylic cover with anti-glare coating. This makes the device durable and easy to maintain.
The readings are displayed in both digital and graphical form. For immediate recognition of the status, colour codes are used. If the air speed stays within the desired range, the instrument displays values in green. If the warning threshold is crossed, the instrument informs the pilot by changing the colour of graphs and digits to orange. If alarm levels are reached, the digits and graph bars turn red. The threshold values (both upper and lower) are to be defined by the buyer at placing an order.
Parameter | Value | |
Dimensions (height x width x depth) | 85 x 85 x 67 mm | |
Display diameter | ∅ 80 mm | |
Mass | 175 g | |
Power supply | 12 V (< 85mA) | |
Displayed parameters1 | Fuel level (l) | Trim signal (-) |
Measurement range1 | 0 ÷ 120 l | 0 ÷ 10 |
Operation threshold1 | Warning (orange):
Alarm (red):
| —- |
Displayed parameters1 | Engine operation time (H:min) | Total engine operation time (H:min) |
Measurement range1 | 0:00 ÷ 99:59 | 0:00 ÷ 999:59 |
Operation threshold1 | —— |
1 Units and values to be specified by the buyer at placing an order
For details see the manual.
